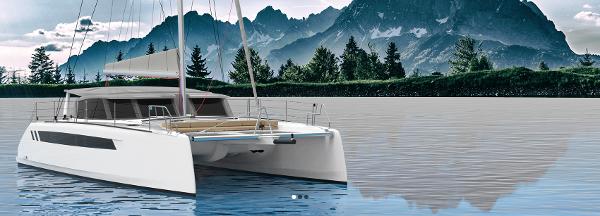

Seawind 1160 Lite

Deck

• Aluminium Hatches & portholes (9 in total)
• 4 x Forward Hatches 470mm x 470mm
• 2 x Mid cabin hatches 470mm x 470mm
• 1 x Port Bathroom window hatch 507mm x 377mm
• 1 x Galley window hatch 507mm x 377mm
• 1 x Aft Cabin window hatch 507mm x 377mm
• Fibreglass Deck Hatches:
• Forward anchor & storage hatches x 5
• Cockpit storage hatches x 2
• 6 x Docking cleats. Each side : bow, stern & amidships.
• 1 x Heavy duty mooring cleat on forward walkway.
• Ventilation: 2 x forward cabin hatch vents.
• Mast base turning blocks. All halyards & sail controls to cockpit.
• 12 x Rope clutches.
• Sheet winches : 2 x 46ST – 2 speed self tailing & 2 x 40ST – 2 speed self tailing.
• Stanchions/Rails:  High quality stanchions, bow rails and stern rails with 3 life-lines.  700mm high to meet Australian/CE survey requirements.
• 2 x transom access gates with pelican hook releases.
• 2 x side access gates with pelican hook releases.
• Aft swim ladder: folding stainless aft swim ladder.

Accommodations

INTERIOR FINISH:

• New Lightweight interior design.
• New Floors: synthetic timber flooring.
• Sides and cabin top lined with vinyl or moulded gelcoat.

SALOON

• Ornate polished timber dining table: Lowers to create coffee table or double bed.
• Upholstered settee.
• Cocktail cabinet with ornate polished hinging lid.
• Forward opening windows with in marine ocean hatch frame. Side windows in 6mm toughened glass.
• Saloon / cockpit doors: Moulded gelcoat tri-fold doors. Complete with folding mechanism for folding into Targa walkway.
• Removable aluminium framed, helm hatches.
• Window Cabinets at helm station

SLEEPING CABINS:

• Polished timber solid doors on all private cabins.
• Port & Starboard fwd cabins : Each queen sized bed (2050mm x 1540mm)
• Aft Starboard cabin : Double bed (1990mm x 1230mm)
• Mattresses to be 150mm ( 6” ) foam upholstered.
• Cabins lined.
• Recessed 12volt lighting.
• Storage/Cupboards.

PORT HEAD:

• Polished timber solid lockable door.
• Manual toilet. Discharge via holding tank.
• Holding tanks built in. Discharge Pump out by shore station or directly overboard. Port 130L and Stb 110L.
• Pipes, skin fittings and sea-cocks are easily accessible and to meet survey requirements.
• Vanity basin with pressure hot & cold water.
• Separate shower stall with clear glass door. Wall mounted shower head & mixer tap.
• Electric shower bilge pump with direct overboard discharge.
• Large quantity cupboards / shelves to very high quality.

STARBOARD HEAD:

• Polished timber solid lockable door.
• Manual toilet. Discharge via holding tank.
• Holding tank built in. Discharge Pump out by shore station or directly overboard.
• Pipes, skin fittings and seacocks to be easily accessible and to meet survey requirements.
• Vanity basin with pressure hot & cold water. Shower head and basin mixer tap with electric shower bilge pump.
• Cupboard/shelves to very high quality

Galley

• Spacious galley with co-ordinated Polystone counter surfaces, timber accents.
• Three (3 ) burner LPG stove & oven. Stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out.
• Double bowl stainless steel sink.
• Pressure hot & cold fresh water system.  Single lever mixing tap.
• Refrigerator: Front opening upright fridge 130 litres.
• Spacious freezer – large 60 litre top loading, heavily insulated. 12volt Eutectic system by ICEER.
• Under bench storage with polished timber door fronts & cutlery drawers.
• Inboard side of galley: Over-bench cupboard with sliding door fronts.
• Trash bin, paper towel holder.
• LPG solenoid control in galley.

Engines

• Twin Yanmar 30hp saildrive diesel engines. Fresh water cooling, rubber isolation mounts on reinforced fibreglass bed with integral oil drip pan.
• Two bladed fixed propellers.
• Dual engine controls at port helm station. Remote electric key start at engine controls.
• Fuel tanks: Total 360 litres (80 gallons) in two survey approved pressure tested aluminium tanks. Fuel gauges fitted.
• Water intakes for engines protected by external strainer. ( 1 per engine)
• Twin primary Racor ( or similar) water separator / fuel filters, secondary engine fuel filters. Engine, fuel tank & fuel line installation to Australian standards to meet offshore survey.
• Console mounted engine instruments with electric tachometers, engine monitoring & warning systems, engine hour meters.

Electrical

• High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display.
• Marine grade tinned electrical wiring with extensive use of heat sealed connectors..
• Batteries x 3 comprising:  House System (400 amp hrs) : 2 x 200 amp hr AGM (Absorbed Glass Matt) deep cycle / heavy duty batteries. One engine cranking battery – 700 CCA AGM.
• 230amp heavy duty isolation switch.
• 12 V lighting : Numerous 12V interior lamps and courtesy lights throughout including recessed lights in cockpit. Dome lights in cockpit.
• 4 x 12V Outlets.
• Survey approved navigation lights. Port & Starboard mounted on bow rails.
• Deck floodlight mounted on spreaders.
• Mast head anchor  / riding light.
• New Additional mood lighting in saloon.

Mast/Boom/Sails

• Clear anodised aluminium mast and boom. Single Spreader,  7/8 rig.
• Standing Rigging
• Forestay 3/8 (10mm) 1 x 19 Dieform wire.
• Sidestays 3/8 (10mm) 1 x 19 Dieform wire
• Diamonds 5/16 (8mm) 1 x 19 Dieform wire.
• Halyards
• Main halyard:  12 mm Spectra rope : Heavy duty shackle.
• Genoa halyard:  8 mm Spectra rope. Heavy duty shackle.
• Topping lift:  10 mm rope, Heavy duty shackle.
• Spinnaker Halyard:  10mm rope with snap-shackle spliced to end.
• Boom outhaul.
• 2 x mainsail single line reefing fitted.
• All halyards, reefing lines to be lead back to cockpit through turning blocks, rope clutches.
• Fully battened mainsail. Triple stitched reinforced construction. Leach adjustable batten end caps.  Fibreglass sail battens + batten cars.
• Cruising mainsail cover with integrated lazy jack system.
• Self-tacking headsail with furler. Curved headsail traveller track with end stops. Control sheet to cockpit.
